OnCommand Insight - OCI

           OCI collects and analyzes capacity, performance, and service path metrics in near real time over IP, and without the use of agents. Below explanation walks you through a typical performance troubleshooting exercise in a multi-vendor, multi-platform environment. You can quickly identify the contending resources and bottlenecks within the demonstration by using OCI. In addition, we can analyze an end-to-end service path violation triggered by OnCommand Insight’s configurable alert-based policies.

            A basic OnCommand Insight deployment consists of two servers (Virtual or Physical). One Windows server is designated for the OnCommand Insight Java Operational Client and WebUI, and a separate Windows server is designated for the OnCommand Insight WebUI Data Warehouse for long term reporting. The Java operational Client and WebUI contains the last 7 days of capacity, performance and service quality information. Data from the OnCommand Insight Operational Client is sent daily to the centralized reporting Data Warehouse (DWH) for historical, trending, and forecast reporting needs. In very large geographically dispersed or firewalled data center environments, multiple operational clients can be deployed, and consolidation of enterprise data is possible within a single data warehouse.

=>OCI Dashboard will give the full storage environment details.

Analyzing a LUN latency issue:

In below explanation, an alert is generated from OnCommand Insight indicating VM or LUN latency is over the acceptable policy levels, or the associated application owner complains of poor VM or LUN responsiveness.

Example Trobleshooting:

VM - vm_exchange_1

=>On the “Virtual Machine” page, reviewing the summary pane reveals there is an indicated latency violation of “50.01 ms” within the last 24 hours, with a peak, or top, latency of “450 ms”.

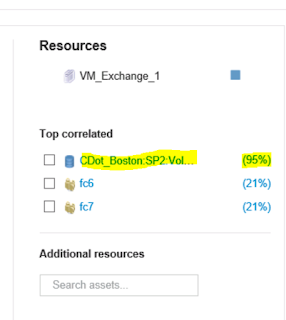

=>Under the “Top Correlated Resources” ranking view, we can see there is a Volume/Lun that is reported as “95%” correlated.

=>By selecting the percentage ranking indicator we can see that OCI analytics report a 95% correlation to latency.

The latency experienced by VM_Exchange is 95% correlated to the latency on the volume (CDOT_Boston:SP2:VOL_01\Lun01).

=>Select the volume checkbox (CDOT_Boston:SP2:VOL_01\Lun01). We can see that there is a direct pattern in latency between CDOT_Boston:SP2:VOL_01\Lun01 and the impacted VM_Exchange_1 server.
The red dot indicates where performance policy has been violated.

=>Now double click the volume (CDOT_Boston:SP2:VOL_01\Lun01 ),

=>Vm_Exchange_1 Server, and a new storage node “(CDOT_Boston_N1)” are identified as having a 91% correlation ranking. Selecting the checkbox OCI indicates that increase in IOPs and Utilization. Notice the last 24 hours utilization is displayed steadily trending upwards on the utilization graph.

Bullies:
Select the Bullies checkbox next to (CDot_Boston:SP1:Vol_\LUN01) adding the volume data to the expert timeline. OCI’s advanced correlation analytics identifies “Bullies”, as shared resources that are highly correlated resources that impact latency, IOPS or Utilization. Also we can easily view the increase of volume (Lun) IOPs corresponding to the increase in latency.

=>Select the 96% correlation ranking for the Bully volume identified in the correlation view. Below information gives an analysis that OCI has identified the high IOPS of one volume to be highly correlated to the increase in latency on a different volume in a shared storage environment.
For example, two volumes sharing the same storage pool where the activity of one volume negatively impacts a different volume that competes for those same storage resources.

=>Now we have identified the Bully resource, investigate further and determine what is driving the Volume IOPs.

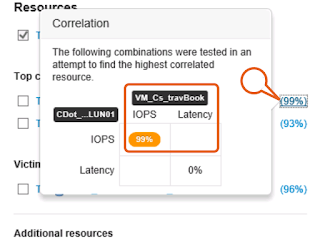

Click the CDot_Boston:SP1:Vol_01\LUN01 bullies, New Virtual Machine has now been identified “(VM_Cs_travBook)”. Select the 99% correlation ranking to view.

The correlation analysis details a 99% correlation between the IOPS driven by the “(VM_Cs_travBook)” VM, and the high IOPS witnessed on the attached volume “(CDot_Boston:SP1:Vol_01\LUN01)”.

=>Select the checkbox for the VM_Cs_travBook VM,
Now we can determine the correlation IOPS of the (VM_Cs_travBook) VM, and the IOPS of the associated volume.

Victims:
Select the Victims volume checkbox for (CDOT_Boston:SP2:VOL_01\Lun01).

=>See the direct correlation in latency for the victim volume (CDOT_Boston:SP2:VOL_01\Lun01), and the higher amount of IOPs generated by the (CDOT_Boston:SP1:VOL_01\Lun01) volume. We can also see both the (VM_Cs_travBook) VM, and the bully volume (CDOT_Boston:SP1:VOL_01\Lun01) are not observing an increase in latency at the specified time, but their activity is impacting the other volume (CDOT_Boston:SP2:VOL_01\Lun01) using the shared storage Storage pool.

=>Now try to determine the reason for the activity. Double click the VM_Cs_travBook VM.

=>And select the 7days data filter and check the IOPS and Latency,

=>Also we can check the remaining performance counter's .. Throughput, memory, CPU.

From the above details provided in CPU, Throughput and Memory graphs, now we have actionable information regarding the VMs performance, and can investigate the cause of the VM’s memory and CPU spike increases.

Aggregate Relocation

            Aggregate relocation operations take advantage of the HA configuration to move the ownership of storage aggregates within the HA pair. Aggregate relocation occurs automatically during manually initiated takeover to reduce downtime during planned failover events such as nondisruptive software upgrade, and can be initiated manually for load balancing, maintenance, and nondisruptive controller upgrade. Aggregate relocation cannot move ownership of the root aggregate. (Source: Netapp site)

The aggregate relocation operation can relocate the ownership of one or more SFO aggregates if the destination node can support the number of volumes in the aggregates. There is only a short interruption of access to each aggregate. Ownership information is changed one by one for the aggregates.

During takeover, aggregate relocation happens automatically when the takeover is initiated manually. Before the target controller is taken over, ownership of the aggregates belonging to that controller are moved one at a time to the partner controller. When giveback is initiated, the ownership is automatically moved back to the original node. The ‑bypass‑optimization parameter can be used with the storage failover takeover command to suppress aggregate relocation during the takeover.

Command Options:

Parameter	Meaning
-node nodename	Specifies the name of the node that currently owns the aggregate.
-destination nodename	Specifies the destination node where aggregates are to be relocated.
-aggregate-list aggregate name	Specifies the list of aggregate names to be relocated from source node to destination node. This parameter accepts wildcards.
-override-vetoes true|false	Specifies whether to override any veto checks during the relocation operation.
-relocate-to-higher-version true|false	Specifies whether the aggregates are to be relocated to a node that is running a higher version of Data ONTAP than the source node.
-override-destination-checks true|false	Specifies if the aggregate relocation operation should override the check performed on the destination node.

CLI:

Aggregate name - HLTHFXDB1

Node1 name - cluster1-01

Node2 name - cluster1-02

Now create aggregate on node2, then relocate to node1 from node2,

Create a aggregate HLTHFXDB1 on node cluster1-02,

Check the newly created aggregate using aggr show command,

Now relocate the aggregate from node 2 to node 1,

Now HLTHFXDB1 relocation is done, check the status using aggr show command,

That's it :)

LIF Migration

    LIF migration is the ability to dynamically move logical interfaces from one physical port to another in a cluster, allowing you to migrate them to higher performing network ports or take nodes offline for maintenance while preserving data access. SAN LIFs do not support migrate in normal operation, as iSCSI and Fibre Channel instead use multipathing and ALUA to protect against network path failure. LIF migration is non-disruptive for NFS and for newer SMB protocol versions.

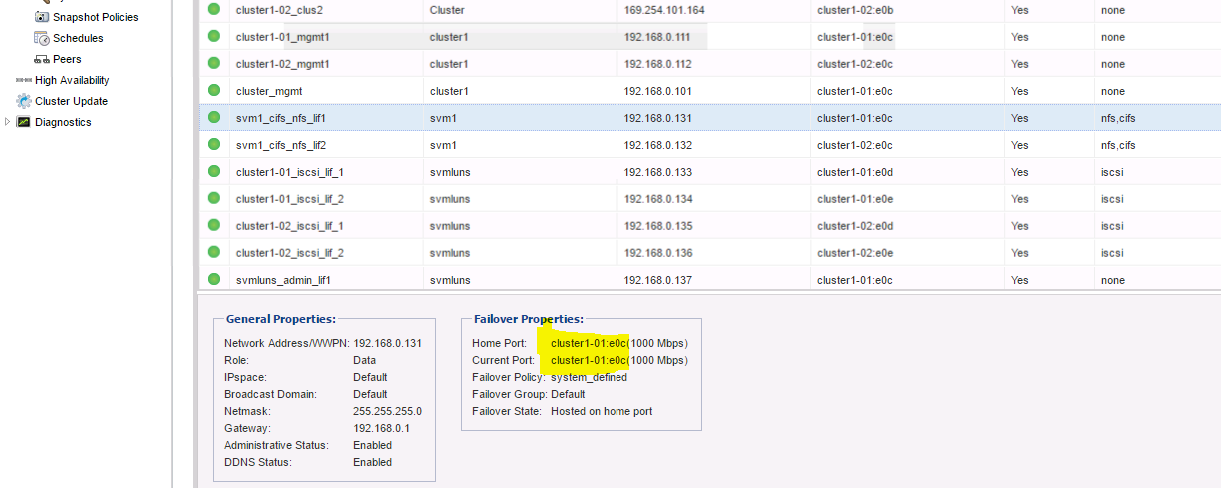

Step1: cluster1 > Configuration > Network -> select network interfaces

LIF1 - svm1_cifs_nfs_lif1 (cluster1-01 node, port e0c)
LIF2 - svm1_cifs_nfs_lif2 (cluster1-02 node, port e0c)

Now we are going to migrate lif "svm1_cifs_nfs_lif1 to cluster1-02,port e0d"

Svm1 uses DNS load balancing for it’s NAS LIFs, so we cannot predict in advance which of those two LIFs the host running,so in CLI we can determine which LIF is handling that traffic using lif statistics command,

Step 2: In the “Network” pane of System Manager, locate in the interface list the LIF which we want to migrate and note the current port assignment.

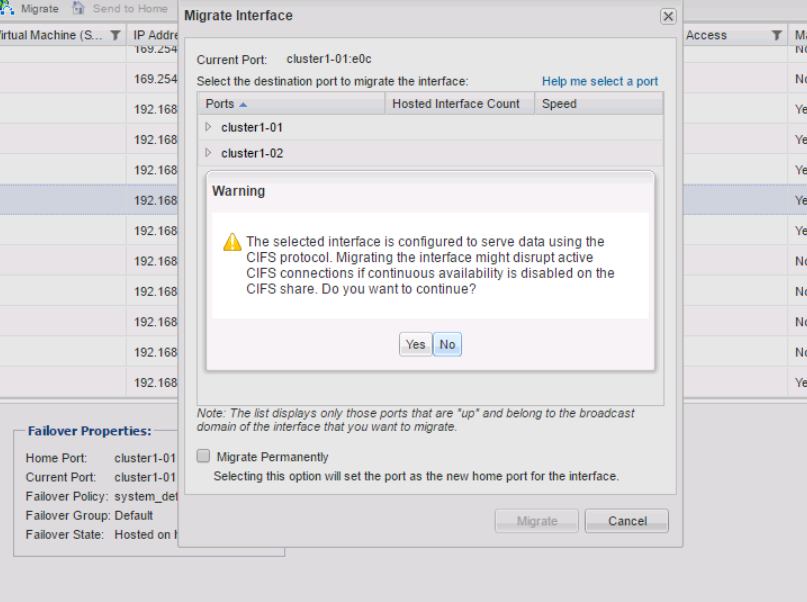

select the migrate option,

Select the destination node port, here it would be cluster1-02, port e0d

notice the Migrate Permanently check box in this window. If you check this box it indicates that the LIF’s home port should also be set to this new port value.

 Migration is completed. Now we can check in the system manager, network interface tab,

The “Current Port” value shown for the LIF in the Network Interfaces list has changed to reflect the nodes’ new port assignment. The small red X next to the current port entry indicates that the LIF does not currently reside on it’s configured home port.

now send the LIF back to it’s home port,

The LIF migrates back to it’s home port, once again without disrupting IO's.

The “Current Port” value for the LIF returns to it’s original value in the Network Interfaces list, and the red X disappears to indicate that the LIF is back on it’s home port.

LIF Migration in CLI:

Step:1 Using the migrate command, migrate the LIF1 to cluster1-02, port e0d,

LIf1 is migrated to cluster1-02, port e0d,

Now revert back to it's home port using revert command,

Now LIF1 is back to it's home port.

That's it :)
